Guest Lecture:Template metaprogramming

约 531 个字 14 行代码 7 张图片 预计阅读时间 2 分钟

Computation on Type —— meta-function

It is finished in compiler time, not runtime. So in the runtime, for example, factorial<5>::value is just a constant 120,(mov eax, 120 ; in assembly) not a function call, because the compiler has already calculated it.

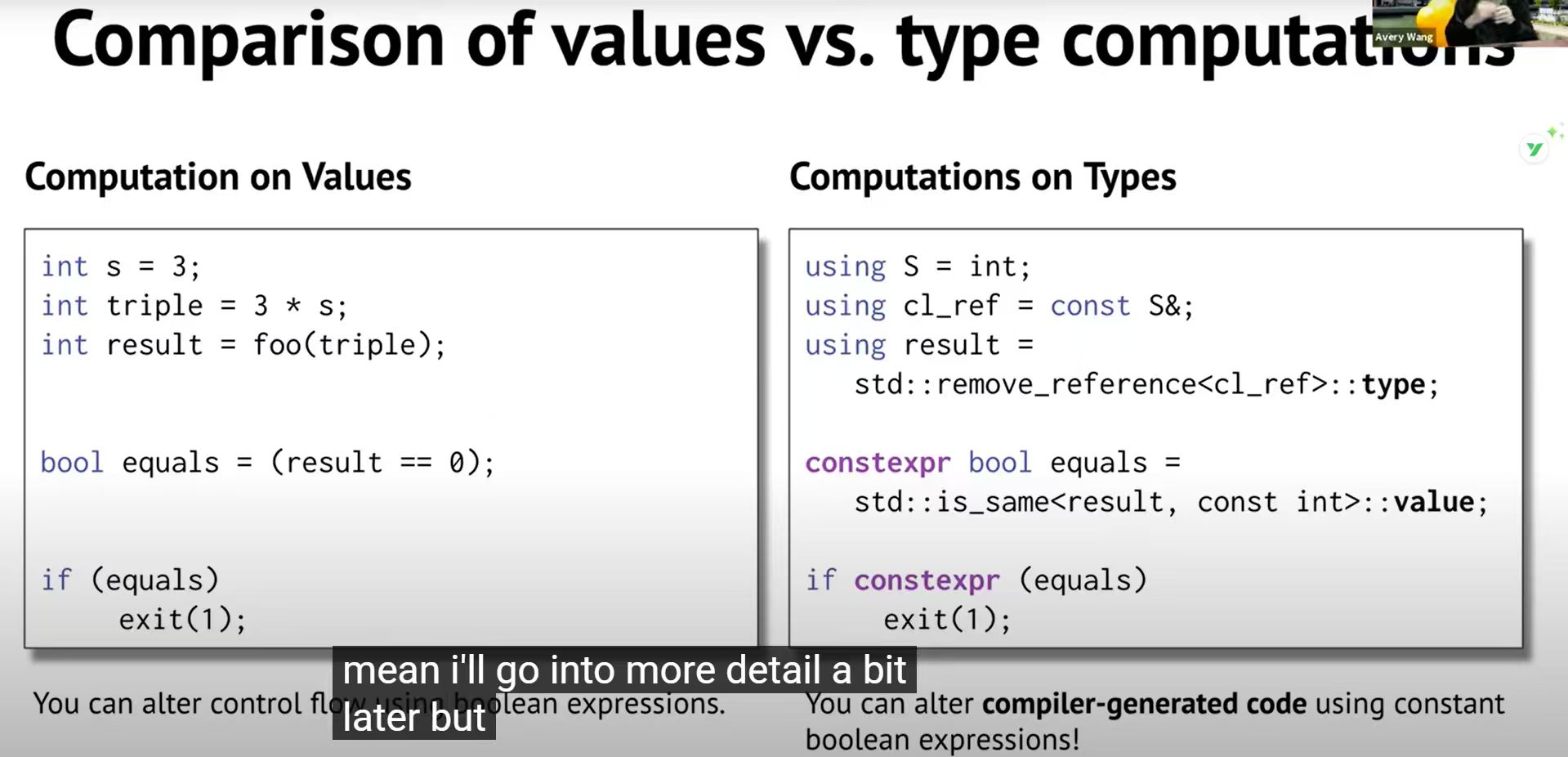

Computation on Type （类型计算） is the core of the template metaprogramming（模板元编程，TMP）

alt text alt text

Translation

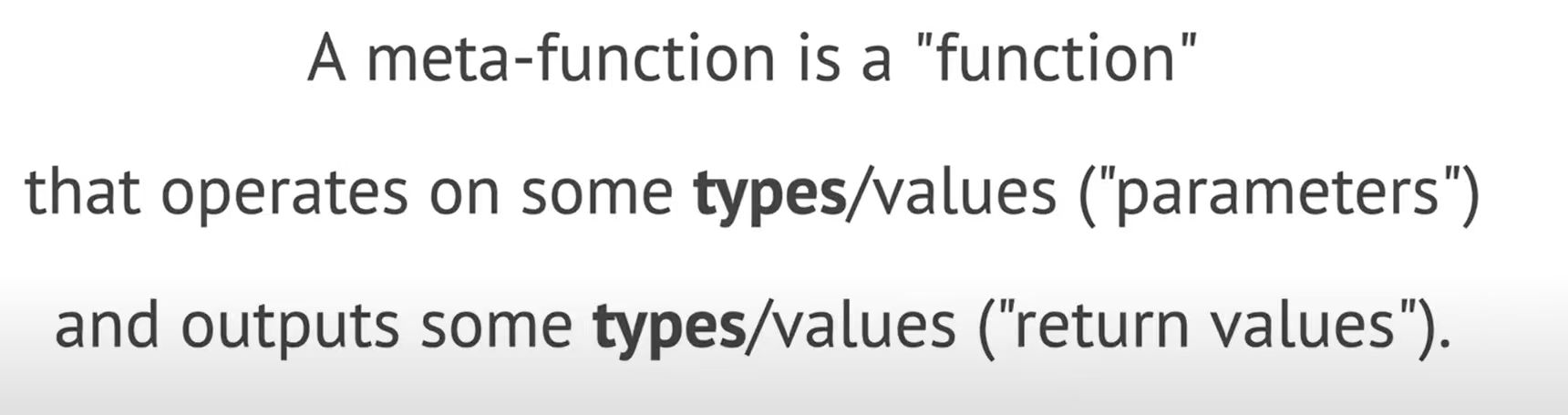

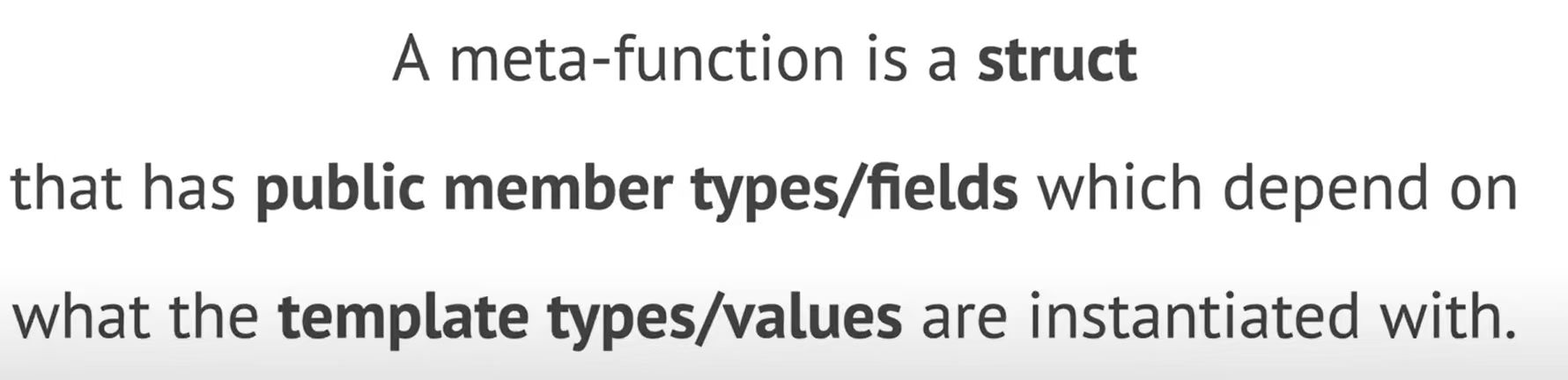

元函数就是一个 模板结构体（struct template），它里面有公开的成员（类型或者常量），这些成员的值或类型依赖于你给它传入的模板参数。

explanation

We can pass a TYPE as the parameter to a meta-function, and get TYPE out as the return value. Also, we can get value out of the meta-function. In another word, most thing we can do on value, we have an analogous thing we can do on types.

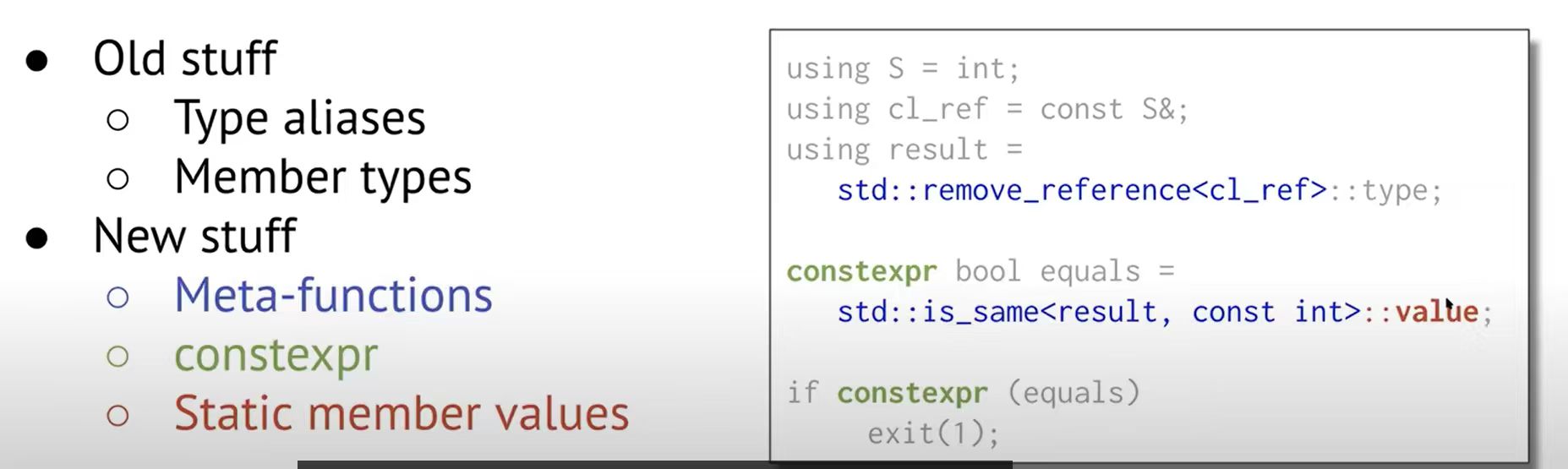

alt text

In the right part, what we do is:

  1. Let S == INT
  2. Let cl_ref == const S& == const int&, meaning that we write cl_ref equals to writing const int&.
  3. By using remove_reference with const int&, we let result == const int, and get type const int into result

alt text

lvalue reference

Basic syntax: Tpye& name = lvalue

An example:

int a = 5;
int& ref = a;  // ref is a's alias
ref = 10;      // equals to a = 10

Apparently, the result is equals to Tpye name = lvalue. Difference:

  • Tpye name = lvalue: copy lvalue to name, name is in different place of memory with lvalue
  • Tpye& name = lvalue: name and lvalue point to the same block of memory

alt text

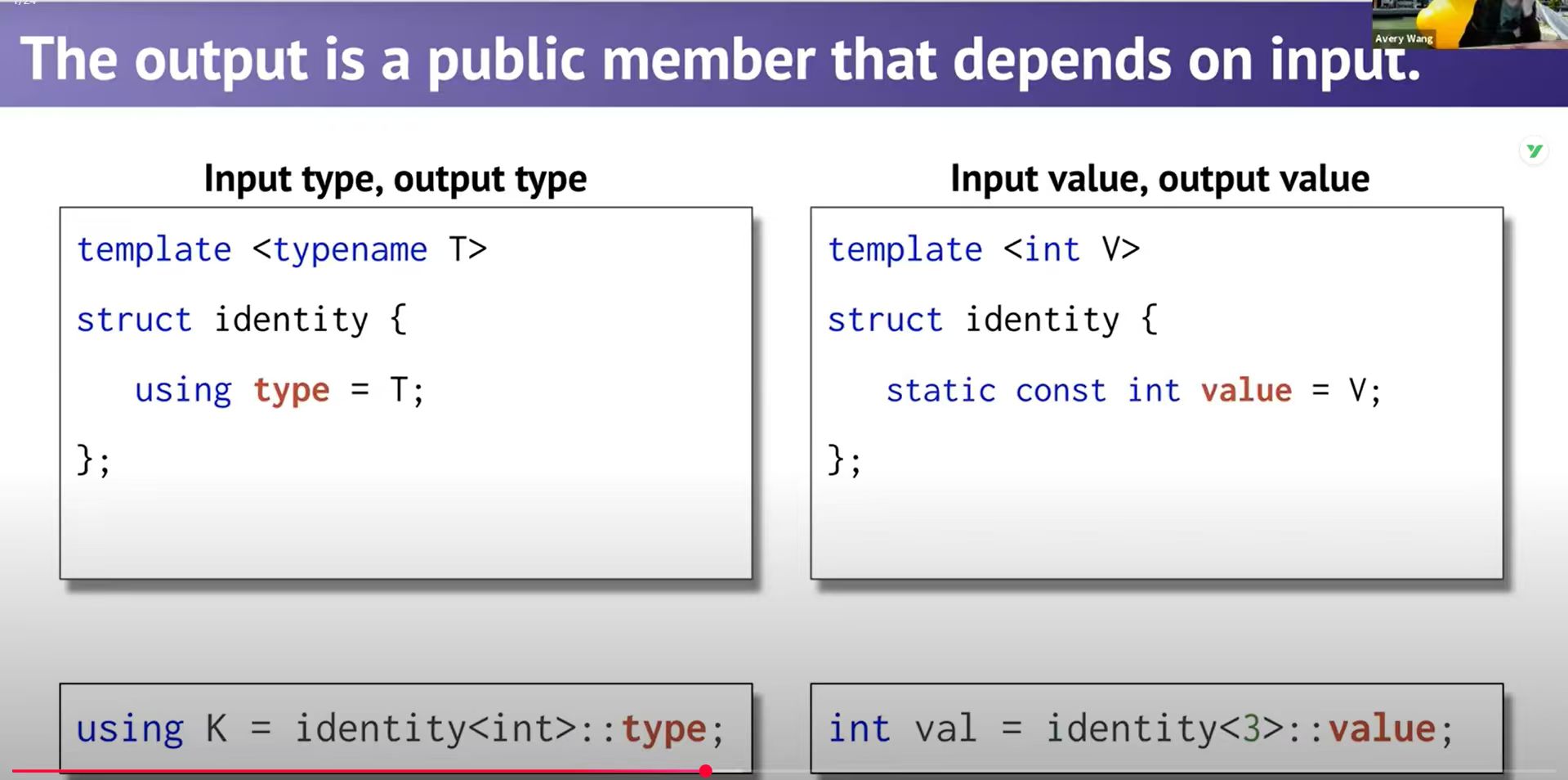

Must use CLASS or STRUCT to define a meta-function, because CLASS or STRUCT can have member TYPE / VALUE.

Here are two examples of meta-function:

// 类型计算
template <typename T>
struct add_pointer {
    using type = T*;    // 输出类型
};

// 数值计算
template <int N>
struct factorial {
    static constexpr int value = N * factorial<N-1>::value; // 输出常量
};

We can use using (using <name> = <type>;) to define a TYPE member, and static constexpr (static constexpr T value = <value>;) to define a VALUE member.

DIFFERENT FROM FUNCTION

We never need to create an instance（实例） of the struct. Because meta-function is a result container, not a real object. IT IS A STRUCT, we use :: to access its member(::value for its value, ::type for its type).

Template Deduction

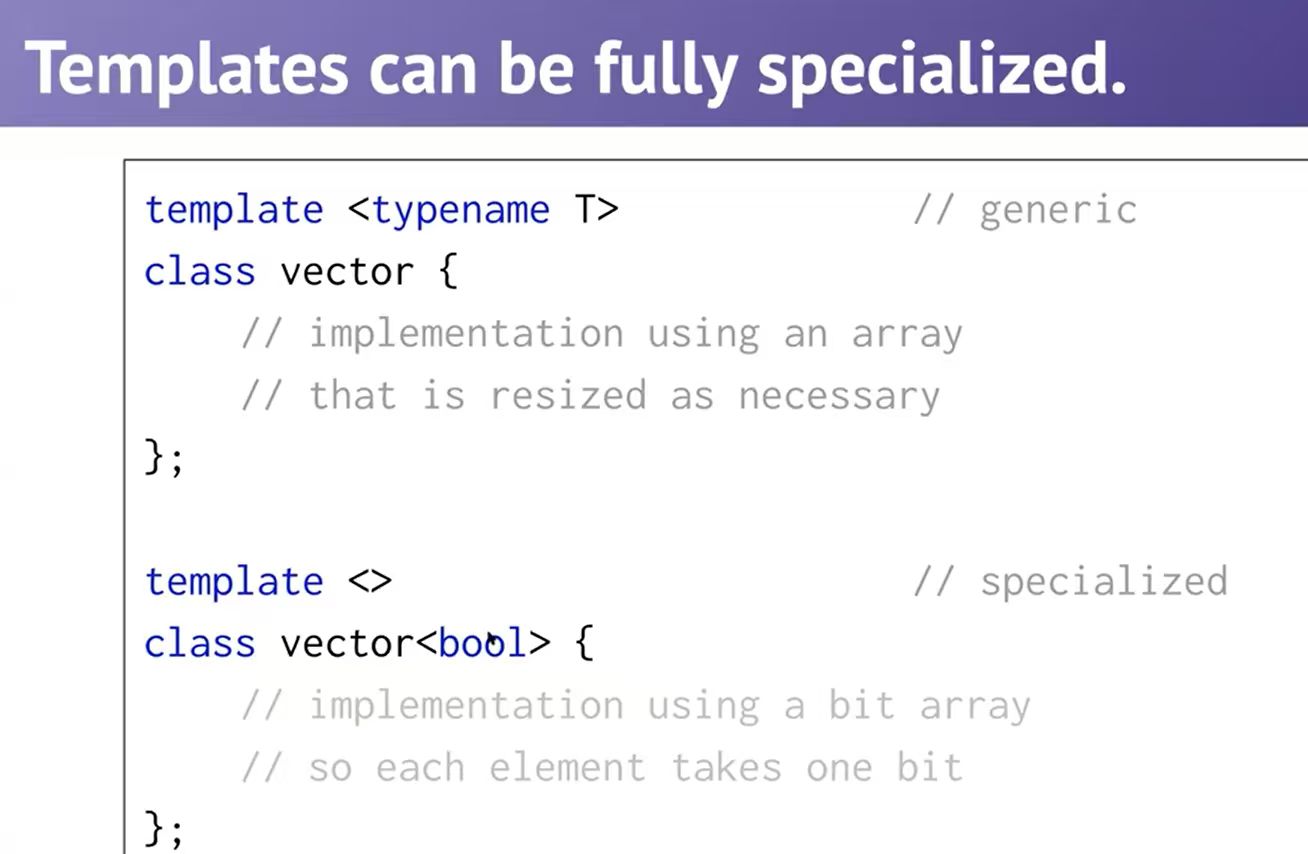

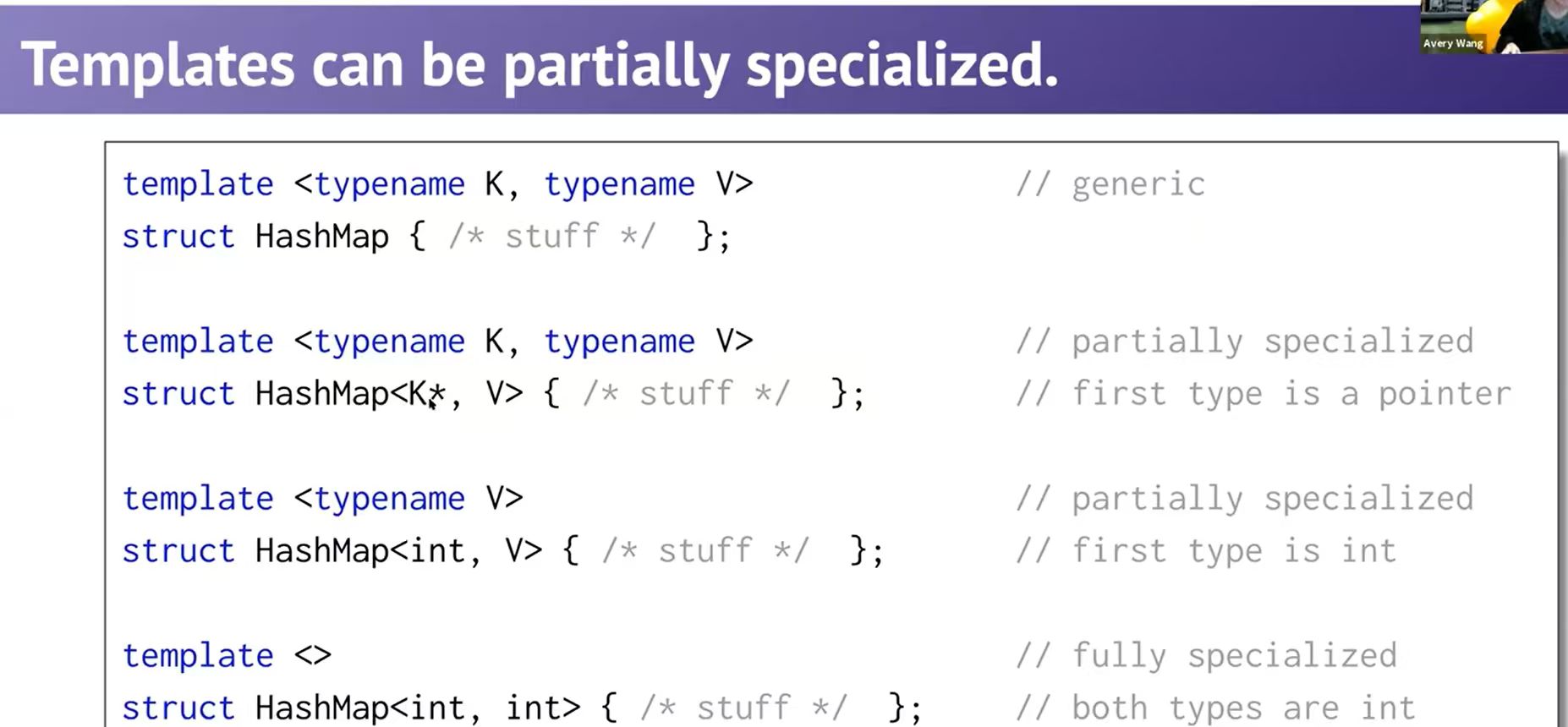

Template Specialization: we can have generic template, and also have special version of the template for some specific types.

alt text

alt text

We can judge whether it is specialization by looking at the template argument list.

  • If we donnot pass any template argument to the class / struct, it is a full specialization. If we pass some template argument, but not all, it is a partial specialization. If we pass all template arguments, it is a generic template.

When using the template, the compiler will choose the most specialized version that matches the template argument. Choosing by ranking, ranking from most specialized to least specialized.（从最特化开始到最一般化依次尝试）

if constexpr : can turn off some branch of code in compile time. If the condition is false, the code in that branch will not be compiled.

References

Check type trait (a cpp library) for more template function

Check Google C++ Style Guide for coding style.

Use Compiler Explorer to see how the compiler translates C++ code to assembly code.

Browse xkcd.com for fun.
